Wenlock Commercial Properties Ltd – Delgrave House

Gas Connection

  • 92 meters of 63mm MDPE MP gas main extension
  • 50 meters of 90mm MDPE MP gas service
  • GC8 free standing kiosk & Base
  • Installation of an MP U160 Gas Meter
  • 50 Meters 63mm SDR11 PE Outlet pipework

Project Value – £49,479.00

Wenlock Commercial Properties are a commercial landlord who have existing property in Skelmersdale Lancashire. They decided to extend the commercial facility to provide expansion capacity for either the existing tenant or other organisations looking for commercial space.

Utility Site Services were engaged to provide a turn key medium pressure gas connection capable of 1661Kw/h including the meter and outlet pipework.

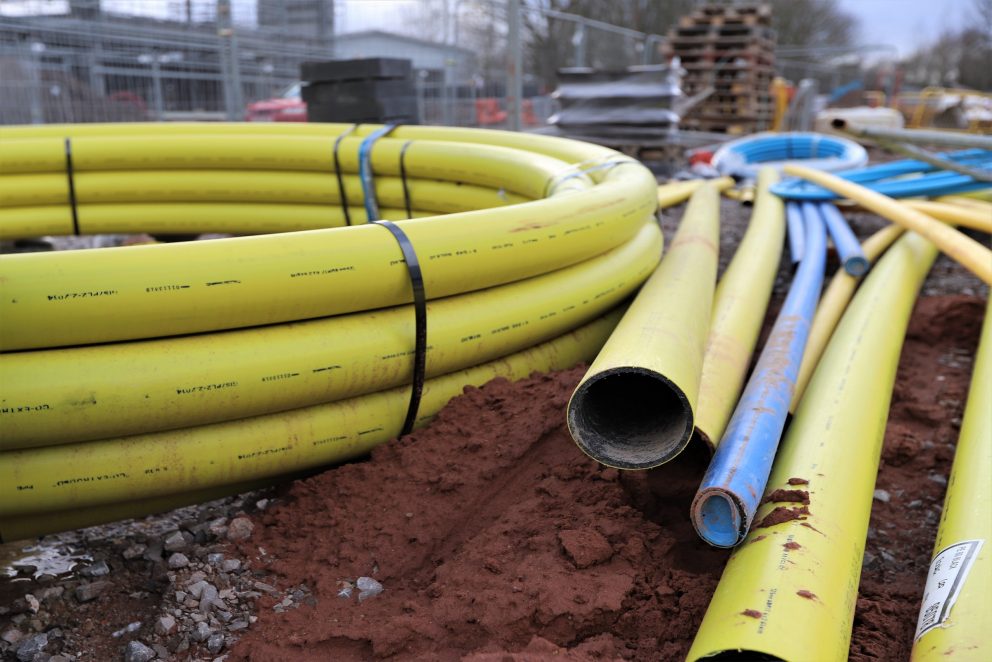

As part of the scope of works Utility Site Services extended a passing 63mm MDPE mains by 92 meters and then laid, tested and commissioned a new gas service, 55 meters of 90mm MDPE, terminating with a 3″ emergency control valve (ECV).

In order to provide the load, Utility Site Services installed a medium pressure U160 gas meter which sat within a GC8 Kiosk and base.

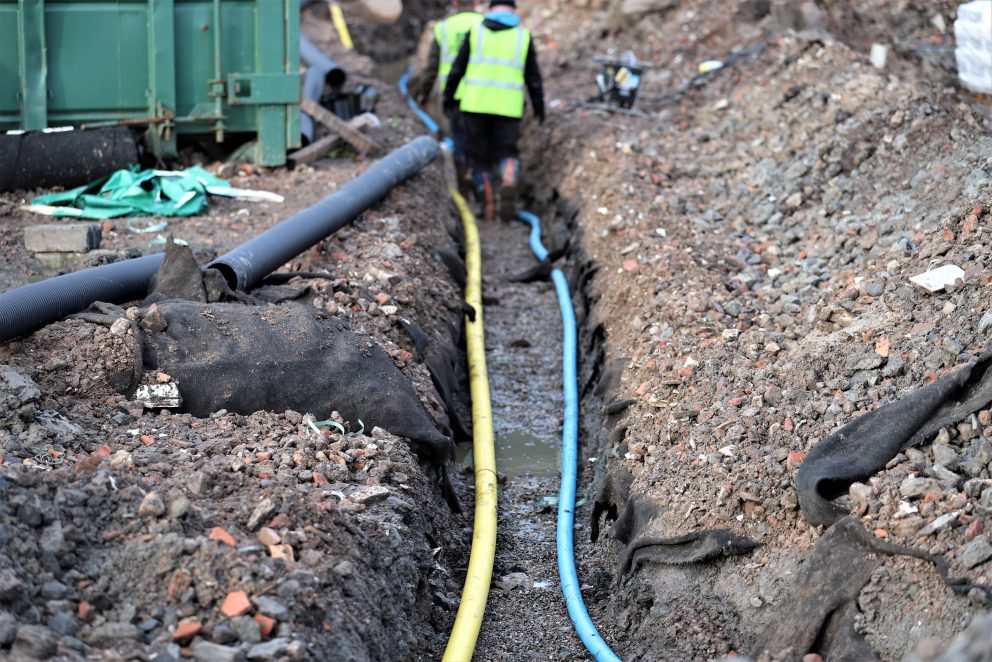

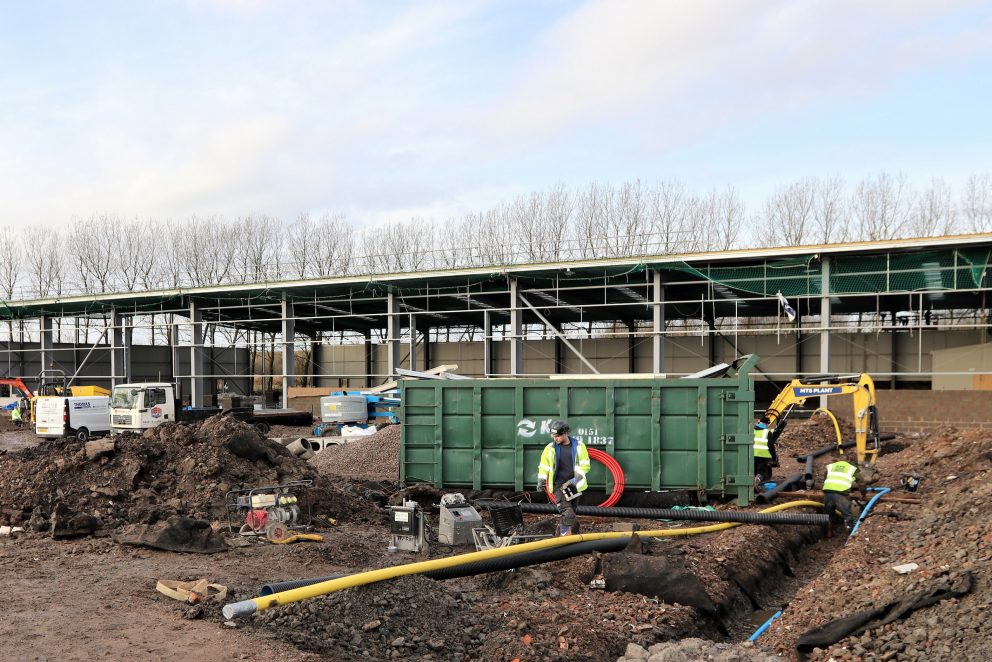

To provide the client with a fully end-to-end managed service, we also installed 50 meters of 63mm SDR11 Outlet pipework from the boundary meter location, to the building, terminating internally with 2″ PN16 flange isolation valve.
